WATER CHILLER
precision cooling, water-borne.

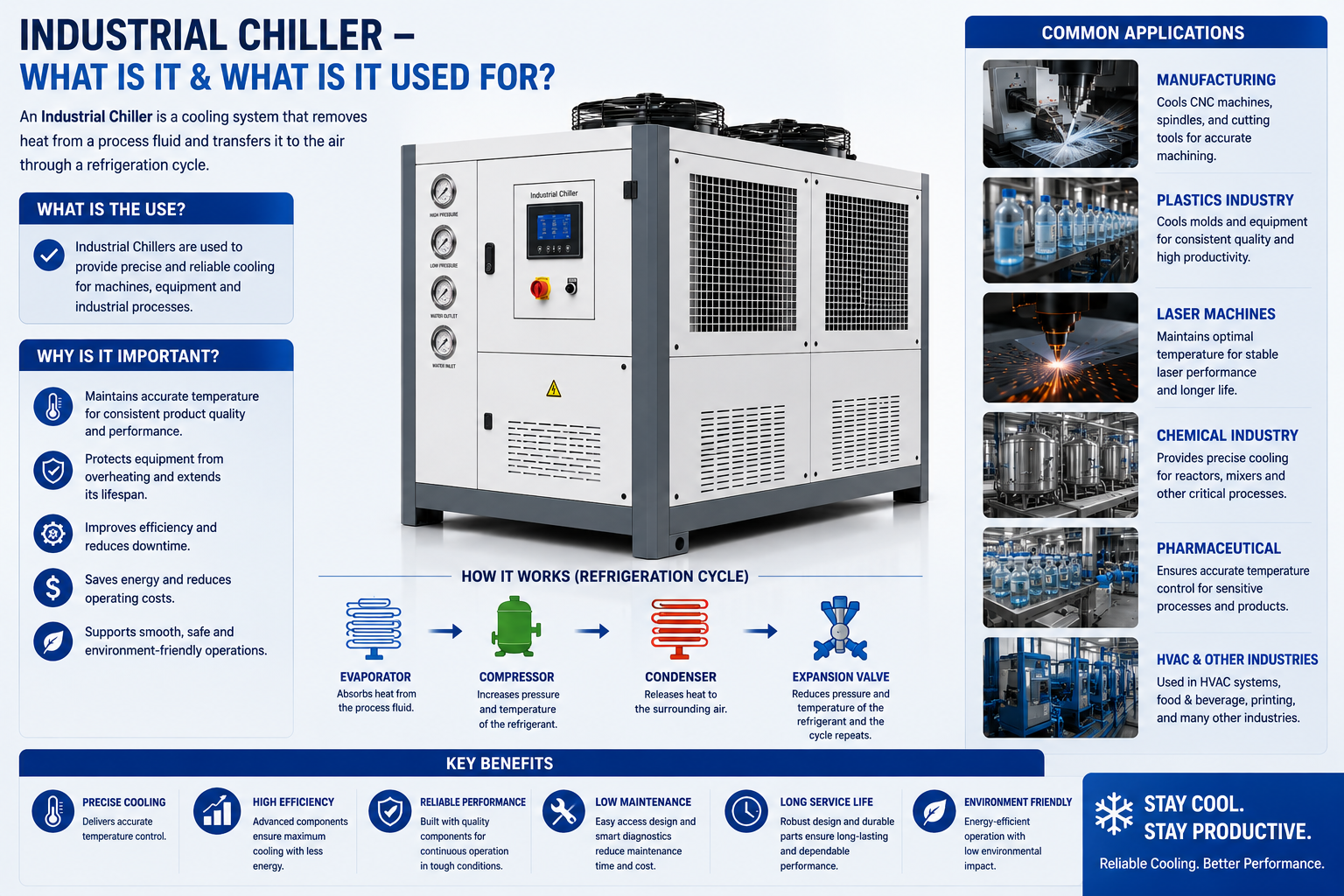

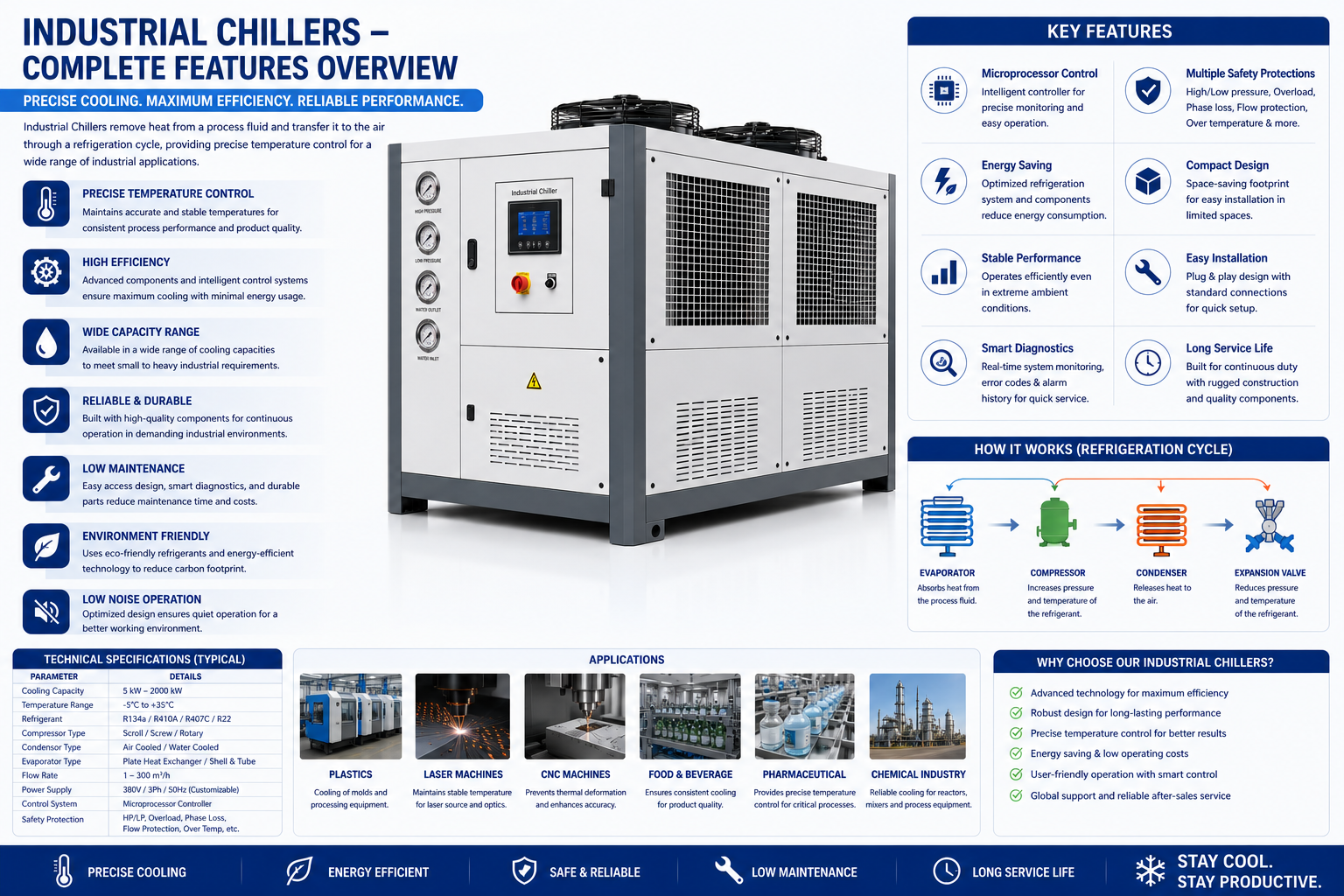

Our water chillers use a closed-loop water circuit to absorb process heat and transfer it to a paired cooling tower or dry cooler. They deliver rock-steady temperatures — typically ±0.5°C — for demanding applications like plastic injection moulding, laser cutting machines, food processing lines, pharmaceutical reactors and electroplating baths.

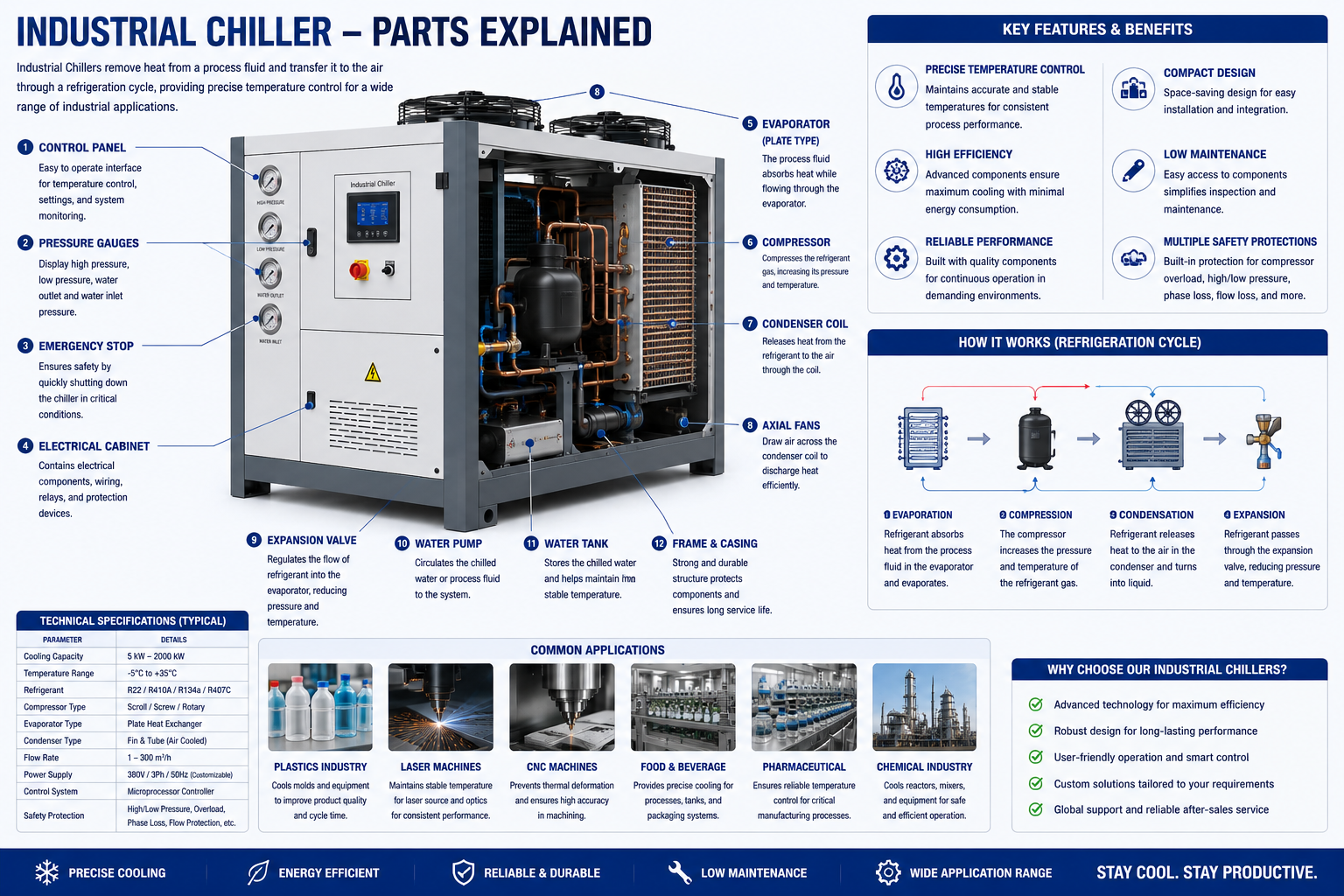

Built with high-efficiency plate or shell-and-tube evaporators, scroll or screw compressors and a fully programmable PLC panel, each unit is factory-tested before dispatch. We size every chiller to your exact heat load and provide complete installation, commissioning and AMC support.
WATER CHILLER — WHAT SETS IT APART
High-Efficiency Evaporator
Plate or shell-and-tube evaporators with titanium or stainless steel plates for maximum heat transfer and corrosion resistance.
Scroll / Screw Compressor
Hermetically sealed scroll compressors for smaller capacities; heavy-duty screw compressors for 50 TR and above — both energy-efficient and quiet.
PLC Control Panel
Fully programmable PLC with digital display delivers ±0.5°C accuracy. Alarm outputs, auto restart, remote monitoring ready.
Closed-Loop Water Circuit
Closed system eliminates airborne contamination, algae and mineral build-up in process lines — extending machine tool life significantly.
Safety Protection Suite
High / low pressure switches, anti-freeze thermostat, flow switch, phase-failure relay and over-temperature alarms ensure safe, unattended operation.
Industry Applications
Plastic injection moulding, blow moulding, laser cutting, food & beverage, pharmaceuticals, electroplating, data centres and chemical plants.
OIL CHILLER
temperature-controlled lubrication.
Our oil chillers are engineered to maintain precise lubrication oil and hydraulic oil temperatures in CNC machining centres, hydraulic presses, injection moulding machines and large gearboxes. Overheated oil loses viscosity, accelerates wear on seals and bearings, degrades lubrication films and causes costly machine downtime — our chillers prevent all of that by keeping oil temperature within a tight, programmable band.
Available with brazed-plate or shell-and-tube heat exchangers, our oil chillers are compatible with hydraulic oil, spindle oil, gear oil and turbine oil. Each unit features a safety thermostat, high-pressure protection, anti-freeze circuit, integrated oil pump options and a digital temperature display for real-time monitoring — built to run 24×7 on the shop floor.
OIL CHILLER — WHAT SETS IT APART
Shell & Tube / Plate Heat Exchanger
Stainless steel brazed-plate or copper alloy shell-and-tube HEX designed specifically for viscous oil media — no fouling, no leakage, long service life.
All-Grade Oil Compatibility
Works seamlessly with hydraulic oil (ISO VG 32/46/68), spindle oil, gear oil, turbine oil and cutting fluids — without modifications.
Precise Temperature Control
Digital thermostat with ±1°C accuracy maintains optimal oil viscosity — protecting spindle bearings, hydraulic seals and valve performance.
Integrated Safety Controls
High oil-temperature alarm, low refrigerant pressure cut-out, anti-freeze protection and phase-reversal relay ensure safe 24×7 operation.
Compact Skid-Mounted Design
Fully pre-piped and pre-wired on a powder-coated steel skid — minimal installation time. Direct inline connection to existing machine tool lubrication circuits.
Industry Applications
CNC machining centres, VMC / HMC spindles, hydraulic power packs, injection moulding machines, transfer press lines, large industrial gearboxes.
WATER CHILLER vs OIL CHILLER
pick the right one for your process.
| Parameter | Water Chiller | Oil Chiller |
|---|---|---|
| Cooling Medium | Water / Water-Glycol | Hydraulic / Spindle / Gear Oil |
| Capacity Range | 2 – 200 TR | 1 – 50 TR |
| Temperature Range | –10°C to +25°C | +20°C to +60°C |
| Heat Exchanger | Plate / Shell & Tube Evaporator | Brazed Plate / Shell & Tube (Oil-side) |
| Typical Applications | Injection moulding, laser, food, pharma | CNC, VMC/HMC, hydraulic packs, gearboxes |
| Compressor Type | Scroll / Screw | Scroll / Rotary |
| Control Panel | PLC with HMI / Digital Display | Digital Thermostat / PLC Option |
