OIL FREE COMPRESSOR
100% clean, oil-free air.
Our oil-free reciprocating compressors deliver 100% oil-free compressed air for pharmaceutical, food, beverage, electronics and other sensitive applications where contamination is not an option.
Backed by professional installation, genuine spares and responsive service, these machines protect both your product quality and your process integrity.
CLEAN AIR, ENGINEERED IN
every component counts.
PTFE Composite Piston Rings
Self-lubricating PTFE-filled composite rings compress air without any oil entering the cylinder. Rated for 4,000+ running hours before replacement. Carbon-graphite rider rings guide the piston centrally to prevent metal-to-wall contact and eliminate particle contamination.
ISO 8573-1 Class 0 Certified
The highest air-purity classification — zero detectable oil aerosol, zero oil vapour, zero oil liquid. Mandatory for direct food-contact packaging, pharmaceutical GMP manufacturing, breathing air systems and medical device production. Eliminates costly downstream oil filtration.
Crosshead Crankcase Isolation
The crosshead assembly and labyrinth oil scrapers create a physical barrier between the lubricated crankcase and the dry compression cylinder. Even under high-pressure differential or worn seals, no oil pathway exists into the compression chamber — a fundamental design guarantee.
Low Discharge Temperature
Deep-finned cast iron cylinders and heads dissipate heat efficiently without an oil film. Cooler cylinder temperatures preserve PTFE ring integrity and extend ring life. Two-stage units include an intercooler between stages to further reduce temperature and improve volumetric efficiency.
No Oil Changes, Minimal Upkeep
Eliminate oil changes, oil separator replacement and oil filter costs entirely. Service schedule reduces to: inlet air filter (500 hrs), PTFE piston rings (4,000 hrs) and valve inspection (8,000 hrs). Total cost of ownership is significantly lower than oil-flooded machines with downstream filtration.
Stainless Steel Valves & Fittings
All wetted parts in contact with compressed air — valve plates, valve seats, discharge pipework and manifolds — are stainless steel or PTFE-lined. No corrosion, no scale, no metal particles entering the air stream. Suitable for GMP environments where material traceability is required.
TECHNICAL SPECIFICATIONS
the numbers that matter.
| Parameter | Specification |
|---|---|
| Air Purity Class | ISO 8573-1 Class 0 — Zero oil (0 ppm certified) |
| Power Range | 1 – 30 HP (0.75 – 22 kW) |
| Capacity Range | 3 – 120 CFM (0.085 – 3.4 m³/min) |
| Working Pressure | 7 bar, 8 bar, 10 bar (higher on request) |
| Compression Stages | Single-stage (up to 8 bar) / Two-stage (up to 10 bar) |
| Piston Ring Material | PTFE composite (self-lubricating) — 4,000 hr rated life |
| Oil Carry-Over | 0 ppm (no oil in compression zone) |
| Cooling Method | Air-cooled (finned cylinder & head) with intercooler on 2-stage |
| Noise Level | 68 – 78 dB(A) at 1 metre |
| Motor Type | IE2 / IE3 induction motor |
| Voltage / Phase | 230 V / 1-Ph (small) or 415 V / 3-Ph / 50 Hz |
| Max. Ambient Temperature | Up to 45°C |

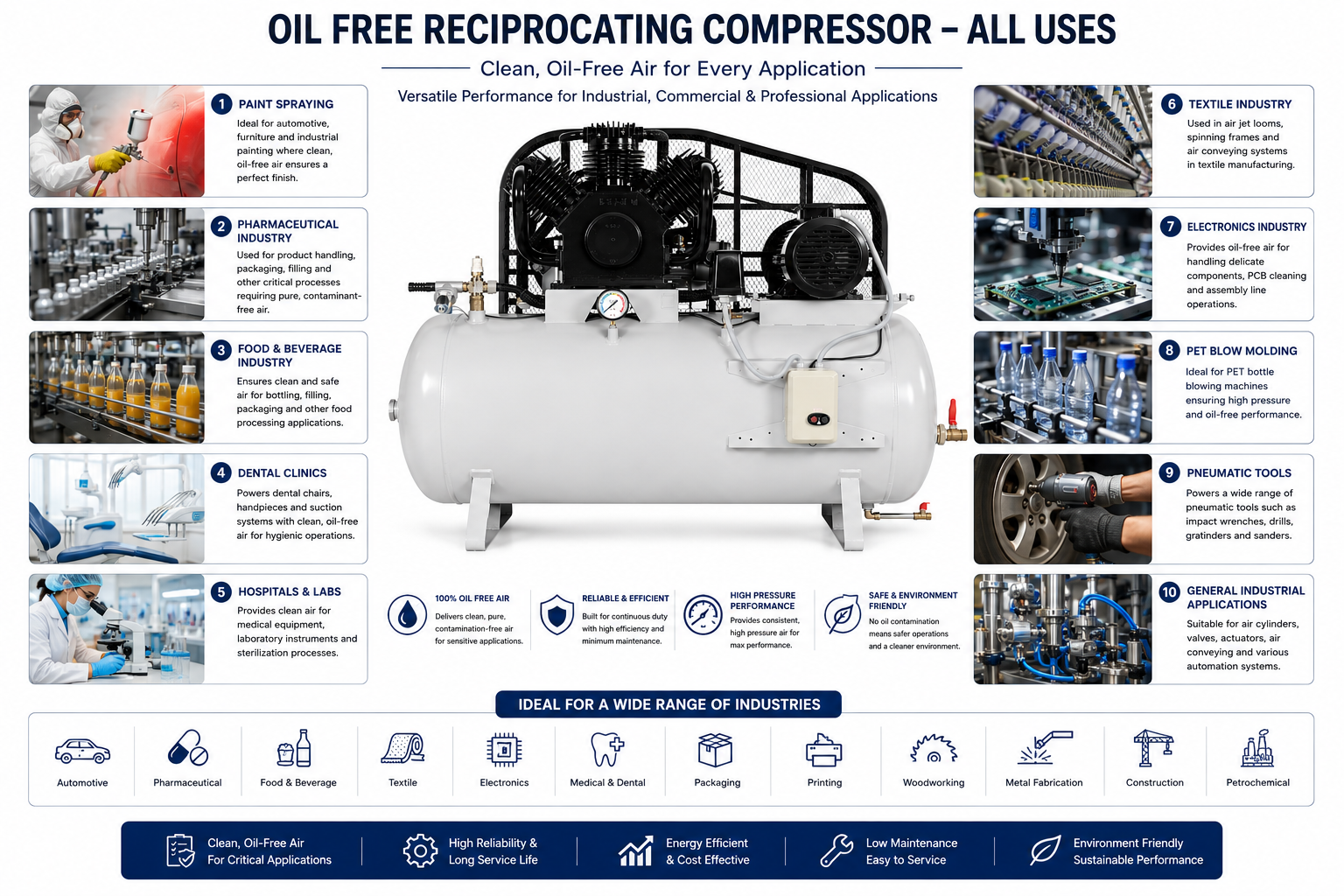

WHERE CLEAN AIR IS
non-negotiable.
In many industries, a single drop of oil in the compressed air stream can ruin an entire batch of product, contaminate a sterile environment or invalidate a regulatory certification. Oil-free compressed air is not a preference in these sectors — it is a mandatory compliance requirement.
Our oil-free compressors are the primary choice wherever product purity, regulatory audit-readiness and zero-contamination risk are the standard — not the exception.
GMP-compliant air for tablet coating, capsule filling, clean room pressurisation
Direct contact packaging, blow moulding PET bottles, product conveying
SMT soldering, wave solder preheat, PCB cleaning, chip placement systems
Dental chairs, surgical tools, hospital pipeline air, ventilator support
GC, FTIR, mass spectrometry carrier gas, analytical instrument air supply
Air-jet loom weaving, precision inkjet printing, dye fixation processes
