TANK MOUNTED COMPRESSORS
compact, plug-and-play power.
Tank mounted compressors combine the compressor and air receiver tank in a single compact, plug-and-play unit — ideal where floor space is tight and quick installation matters. The built-in receiver stabilises pressure and smooths out demand peaks.
Available in a range of capacities to suit workshops, garages and production lines, every unit comes with professional installation, genuine spares and 24×7 breakdown assistance.
ONE UNIT, COMPLETE
plug in and start compressing.

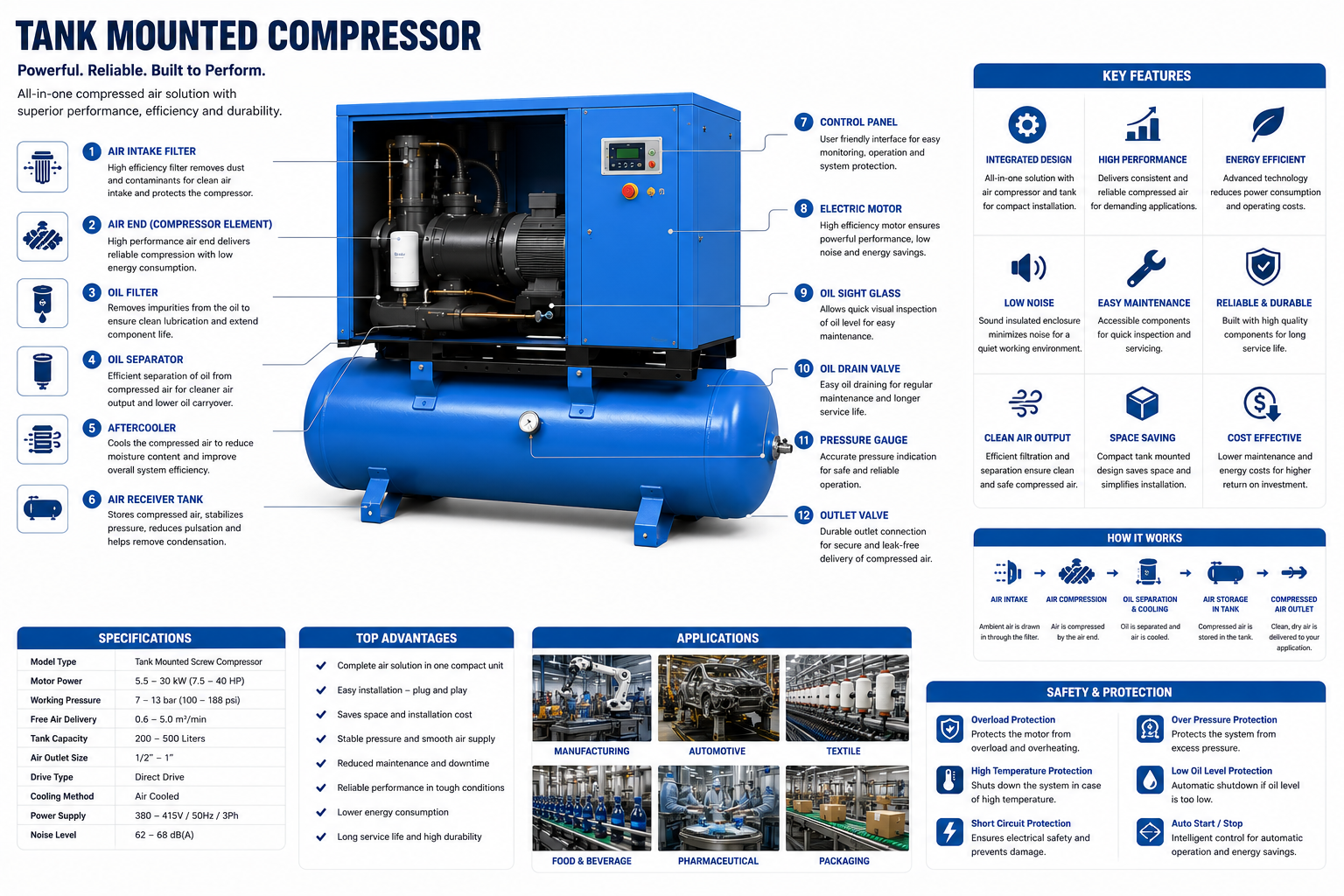

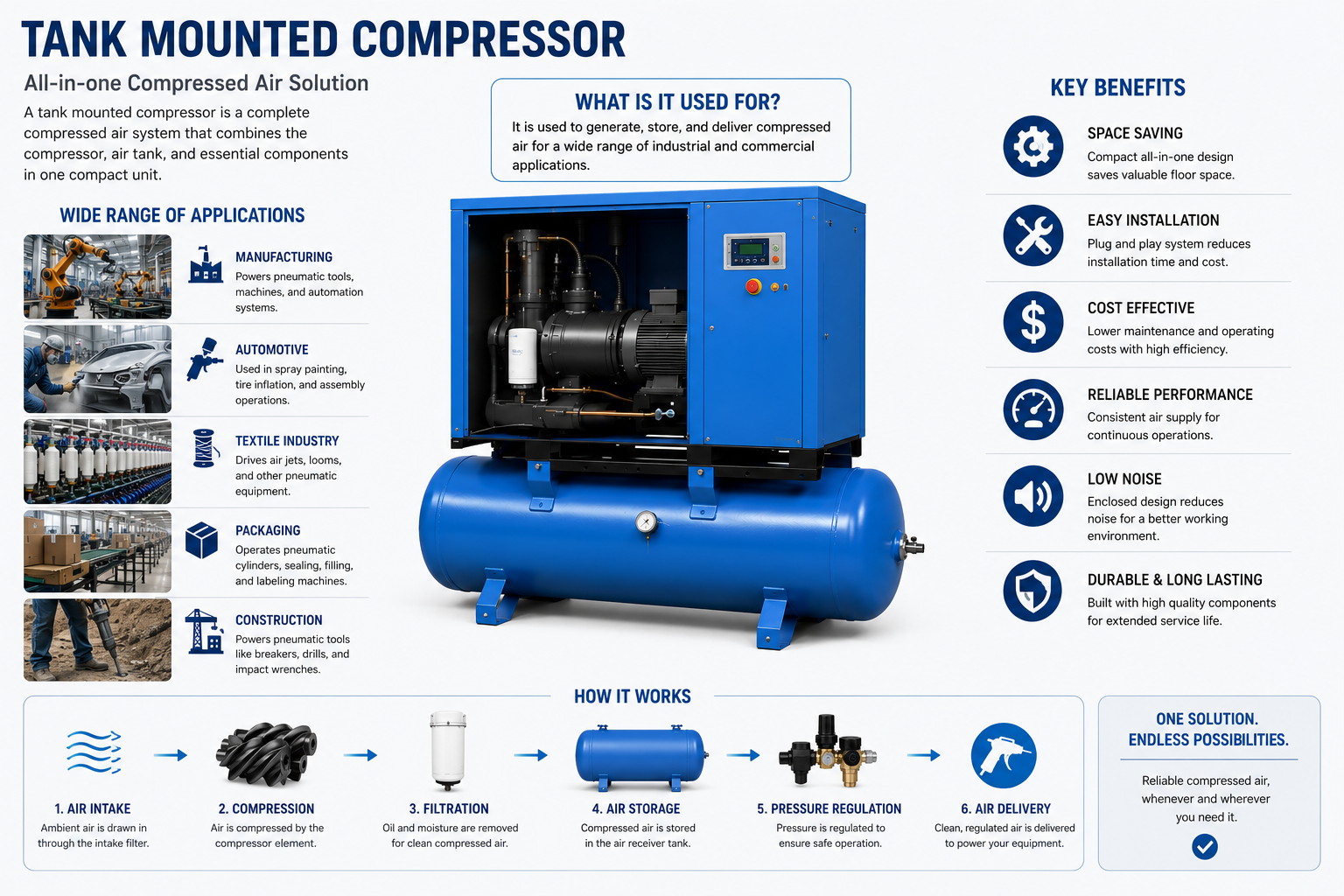

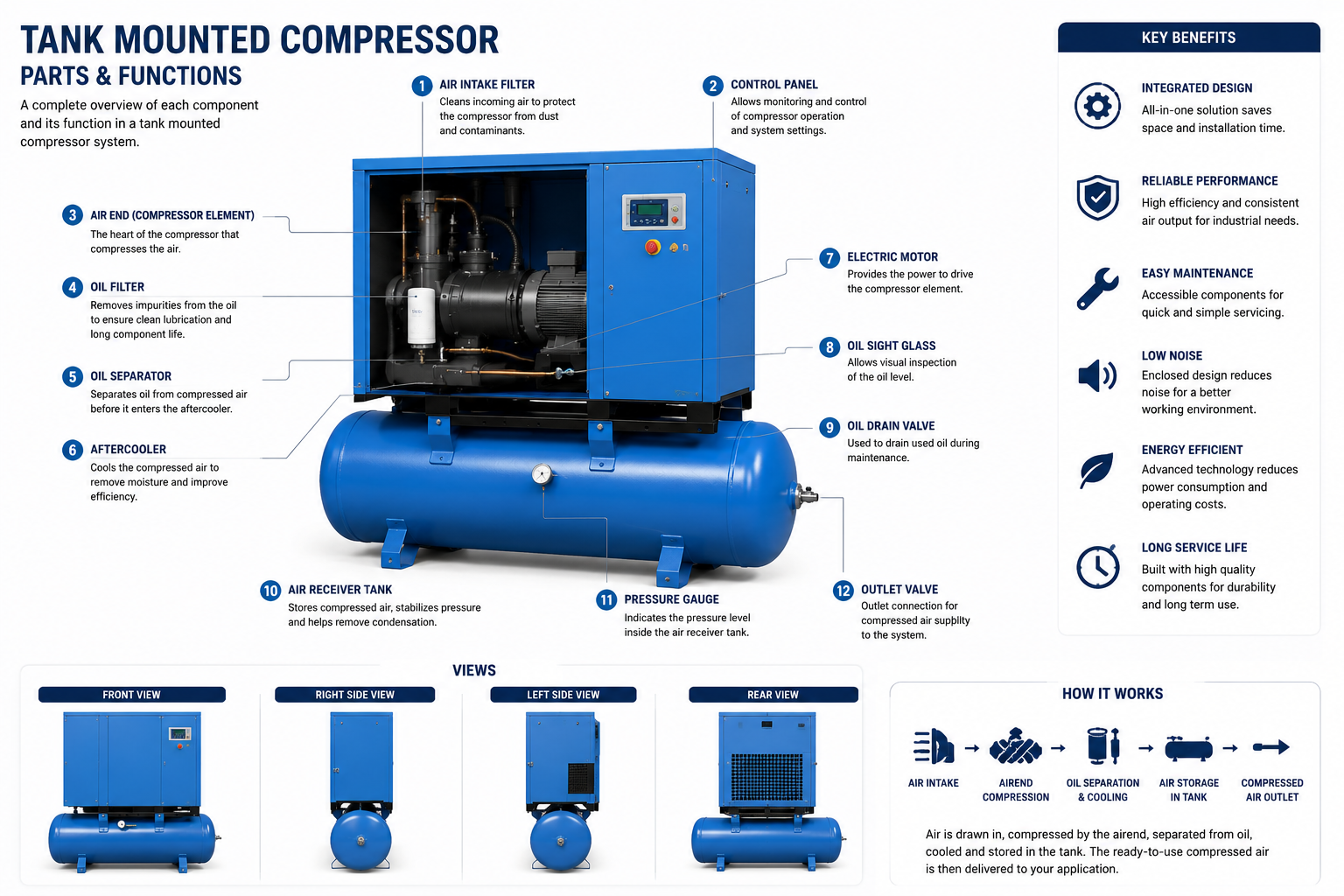

A tank mounted compressor is a fully self-contained compressed-air station. The compressor pump, motor, drive assembly, pressure switch, safety valve, outlet valve and receiver tank are all mounted together on a single rigid base frame — factory-wired, factory-tested and ready to run straight out of the truck.
Unlike a separate compressor + receiver installation that requires interconnecting pipework, structural supports and pressure-tested joints on site, a tank mounted unit needs just one electrical connection and one outlet fitting. Installation time drops from a day to under an hour — with no plumbing or structural work required.
EVERYTHING INCLUDED,
NOTHING TO ADD
engineered for simplicity.
All-in-One Factory-Tested Unit
Compressor pump, motor, V-belt drive, pressure switch, safety valve and receiver tank are assembled, aligned and pressure-tested as a single unit before dispatch. No on-site assembly surprises — what leaves our workshop is exactly what goes into service.
Built-in IBR Receiver Tank
200–500 L IBR-certified pressure vessel mounted vertically beneath the compressor head. Acts as an air buffer — absorbing demand peaks, reducing short-cycling frequency, smoothing system pressure and allowing compressor rest periods that cool the pump and extend motor life.
Auto Pressure Switch & Unloader
Factory-preset pressure switch monitors system pressure and automatically stops the motor at the upper set-point (e.g. 8 bar) and restarts at the lower (e.g. 6 bar). An unloader valve vents the compressor head on each stop so the motor re-starts against zero back-pressure — reducing motor stress and electricity peak draw.
Compact Space-Saving Footprint
Vertical tank mounting stacks the receiver directly under the compressor rather than alongside it — reducing floor footprint by 40–60% vs a separate compressor + standalone receiver arrangement. Ideal for workshops, garages and production corners where every square metre counts.
Certified Safety Components
Every unit ships with a calibrated pressure gauge, BIS-certified safety/relief valve (set 10% above max working pressure), thermal overload relay on the motor starter and a manual drain valve at the bottom of the receiver. Fully compliant with Indian Factories Act pressure vessel regulations.
Easy Maintenance Access
V-belt tensioner, oil fill/drain, inlet air filter, valve plates and pressure switch are all accessible from the front without moving the unit. Belt guard is tool-removable for quick belt inspection. Oil sight glass visible without crouching. Designed so a single technician can complete a full service in under 45 minutes.
TECHNICAL SPECIFICATIONS
the numbers that matter.
| Parameter | Specification |
|---|---|
| Power Range | 3 – 30 HP (2.2 – 22 kW) |
| Capacity Range | 10 – 120 CFM (0.28 – 3.4 m³/min) |
| Working Pressure | 7 bar, 8 bar, 10 bar (adjustable via pressure switch) |
| Receiver Tank Size | 200 L / 270 L / 350 L / 500 L (IBR certified) |
| Compressor Type | Reciprocating piston (standard) / Screw (on request) |
| Compression Stages | Single-stage (up to 8 bar) / Two-stage (up to 10 bar) |
| Drive Type | V-belt with flywheel & adjustable tensioner |
| Motor Type | IE2 / IE3 induction motor (TEFC enclosure) |
| Pressure Switch Range | 6 – 10 bar (cut-in / cut-out, factory preset) |
| Safety Valve Setting | 10% above max working pressure (BIS certified) |
| Cooling Method | Air-cooled (finned cylinder head & intercooler on 2-stage) |
| Voltage / Phase | 230 V / 1-Ph (up to 3 HP) or 415 V / 3-Ph / 50 Hz |
IDEAL FOR THESE
APPLICATIONS
Workshops & Garages
Impact wrenches, tyre inflation, pneumatic tools & lifts
Auto Body & Paint Shops
Spray painting, sanding, dent repair & panel beating
Fabrication & Welding Shops
Plasma cutting, grinding, MIG/TIG assist air, blowdown
Printing & Packaging
Pneumatic actuators, air knives, labelling & coding machines
Dental & Medical Clinics
Clean compressed air for dental chairs, surgical suction & sterilisation
Small Production Lines
Assembly jigs, pneumatic presses, conveyor systems & blowdown
